The plant footprint and energy consumption are increasingly important key efficiency indicators. ENGEL is establishing new records in both disciplines at K 2022 on a minimal footprint, an all-electric high-performance machine is producing sample vessels for medical diagnostics in two-component injection molding under cleanroom conditions.

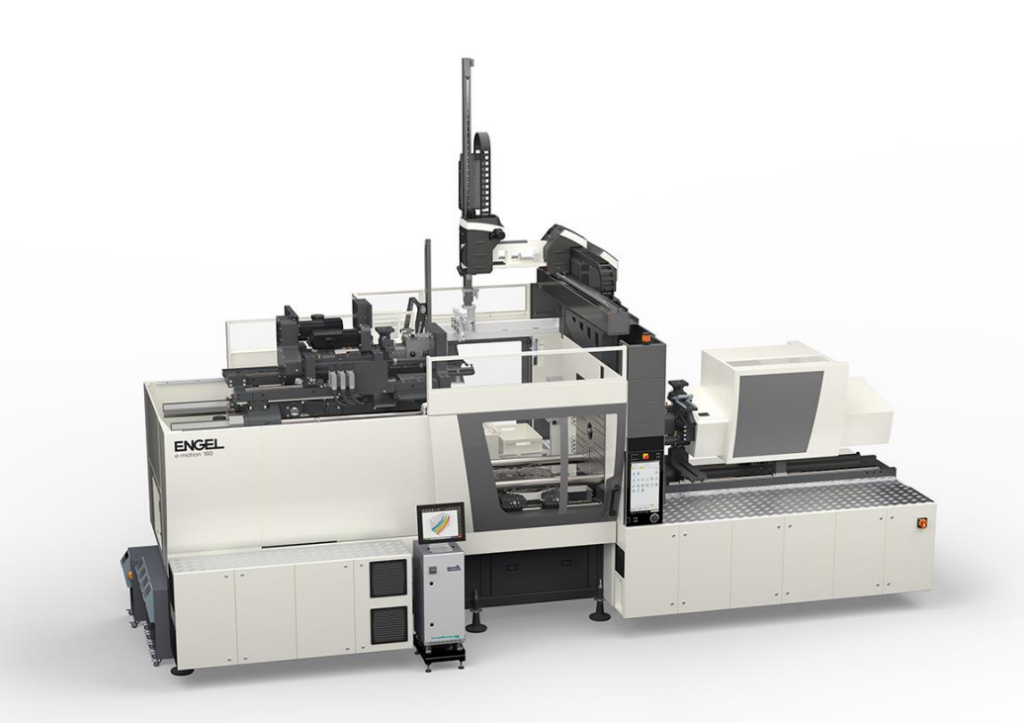

At the heart of the production cell, is an all-electric ENGEL e-motion 160 combi M injection molding machine, and again this is a first. Where ENGEL previously exclusively offered the combi M design with larger injection molding machines, ENGEL is presenting an injection molding machine with just 160 tones of clamping force and a horizontal indexing table in Düsseldorf for the first time this October. In the combi M design, the indexing table divides the injection molding machine’s mold closing area in the center to operate two molds in parallel. This makes combi M technology useful both for integrating two-component injection molding and for efficiently doubling the output, if two identical molds are mounted. The combi M machines are equipped with two injection units as a standard feature. One injection unit is fitted on the stationary platen, the second on the moving platen.

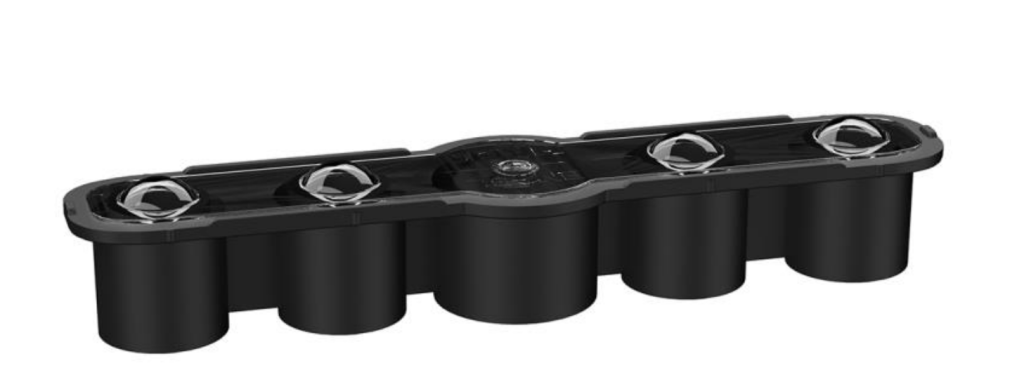

At K 2022, ENGEL will produce two-component containers for medical diagnostics under clean room conditions.

Machine footprint reduced by more than 20 percent

The diagnostics components that ENGEL is producing at its stand on the eight days of the show, are two-component parts. In a first injection molding step, the primary parts with cylindrical cavities are injected using a polycarbonate material dyed in black. Then the indexing table rotates through 180 degrees in order to seal the cylinders with transparent polycarbonate on one side with lenticular covers in a second injection molding step. While this is going on, the next set of primary parts is being produced on the other side. The two molds, with 32 cavities each, come from Hack Formenbau in Kirchheim unter Teck, Germany. combi M horizontal indexing table technology by ENGEL saves valuable floor space, especially where multiple-cavity molds are used. A comparable 32-cavity mold with a vertical rotary table would have needed a larger e-motion injection molding machine with at least 280 tones clamp force. In this application, the horizontal indexing table technology reduces the injection molding machine’s footprint by more than 20 percent. Especially in the clean room, this significantly improves cost efficiency. On top of this, the smaller machine consumes less energy. The all-electric injection molding machines from the ENGEL e-motion series are already some of the most energy-efficient machines on the market in this class.

Additionally, automation makes a massive contribution towards the production cell’s exterior dimensions, which are very compact all told. This is attributable to the compact cell. Thanks to its standardized design, the automation cell, developed by ENGEL, makes it particularly easy to integrate various automation components and other process units while being far
narrower than standard safety guarding at the same time. Inside the compact cell at the K show, two robots are working as a pair to manufacture diagnostics products. An ENGEL viper 20 linear robot is removing the two-component parts and depositing them in trays. Finally, an ENGEL e-pic pick-and-place robot is covering the fully populated trays with an intermediate layer to be able to stack them in boxes and then discharge them via a tray server, which is also integrated.

K 2022

Smart assistance for validated processes

Digitalization has reached the cleanroom – this, too, is something that the exhibit at the ENGEL stand makes clear. The e-motion combi M injection molding machine is equipped with a whole series of smart assistance systems from the ENGEL inject 4.0 program for manufacturing two-component parts. Among other features, this includes iQ weight control, which detects fluctuations in the injection volume and material viscosity and automatically compensates for them within validated limits in the same cycle, and iQ flow control, which ensures constant temperature control ratios by controlling temperature differences in the individual cooling circuits based on a set value. On top of this, visitors to the show can experience the iQ process observer live. The special thing about this smart assistance system is that it does not just optimize individual steps in the injection molding process, but keeps track of the entire process at any given time. Several hundred parameters are analyzed at the same time, and quality-relevant deviations from the reference are transparently displayed. In many cases, the software directly delivers an optimization proposal. iQ process observer is one of the first artificial intelligence applications in injection molding.

Smart assistance systems make the production process more stable and safer, which explains why the focus is increasingly shifting to them in medical technologies and pharmaceuticals. After all, even validated processes can be dynamically controlled. The key to doing this is the definition of process windows instead of concrete setting values for the parameters to be retroactively adjusted. ENGEL developed the new Parameter Limits feature in order to keep all preset values constant with a defined process window. With the help of the new software, a process window can be defined for up to 150 individually selectable process parameters using the CC300 control panel on ENGEL injection molding machines. This means that the tolerance limits are directly available on the injection molding machine at the start of production, and that they are reliably complied with in the on-going process. In turn, this eliminates the risk of input errors. It is this safety on top that makes Parameter Limits so interesting for applications in medical technologies.

At the K show, ENGEL is demonstrating the use of Parameter Limits live.

Injection molding technology from a single source

As a system solution provider, ENGEL ensures in the scope of process digitalization that the control units of external systems, such as the mold or peripheral units, can be integrated with the central CC300 control panel on the injection molding machine. For example, the HACK moldlife sense software is integrated with the CC300 machine control unit with the help of Webviewer technology. HACK moldlife sense detects errors and irregularities in the mold and automatically notifies the machine operator before rejects and high costs occur.

ENGEL stands for injection molding technology from a single source. From the injection molding machine through automation to the integration of external systems.
All information about the K 2022 fair can be found on the page: K2022

ENGEL at K 2022: hall 15, stand C58
